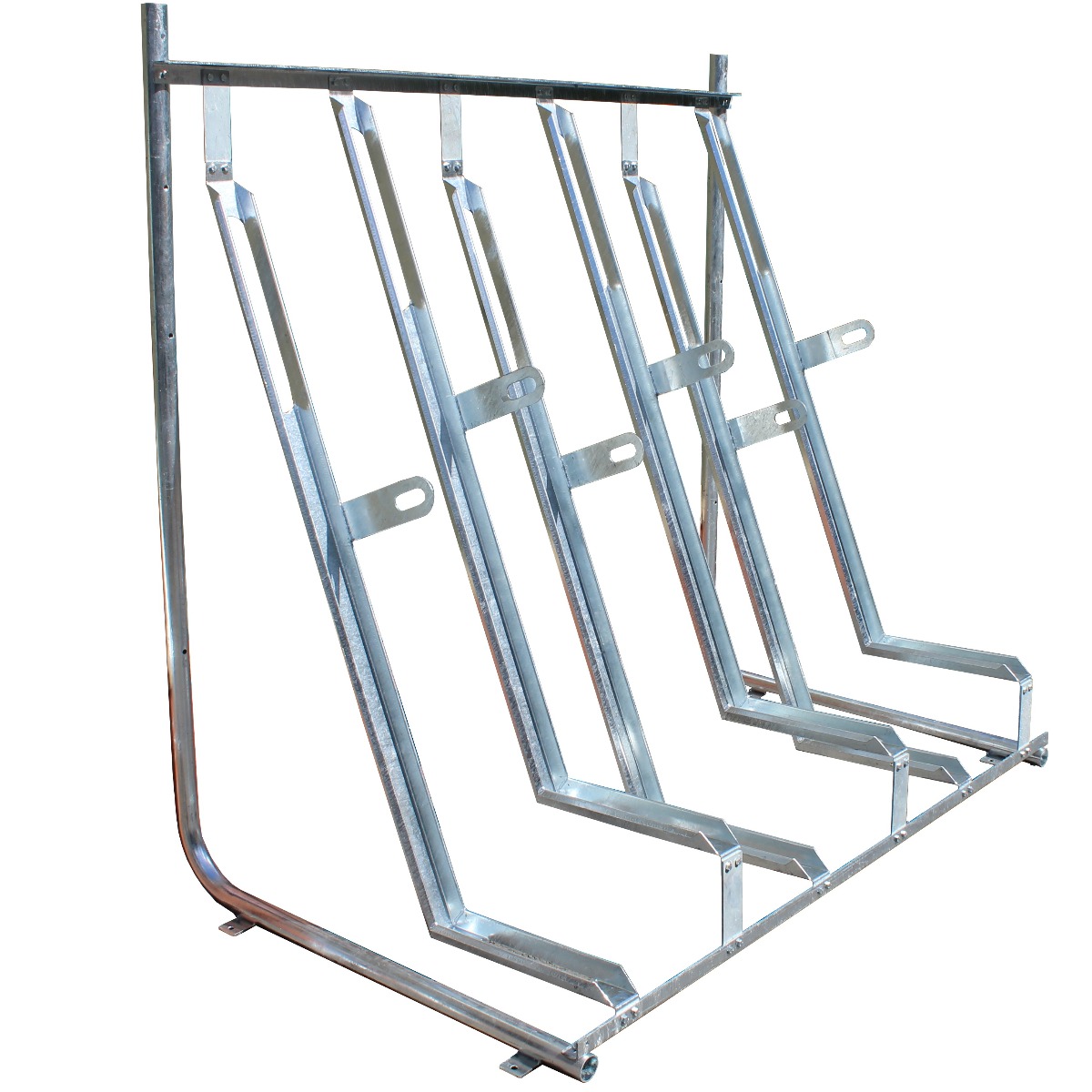

Snowdon Semi Vertical Cycle Rack

Product Code:
SFD413
£87.60 £73.00
87 % Positive Reviews 100 6

Order Today get it by 04.04.2024*

BULK BUY DISCOUNT

* BULK BUY DISCOUNT

INSTALLATION AVAILABLE

INSTALLATION AVAILABLE


PRODUCT DESCRIPTION

No Hidden Charges - price shown is 'per bike'

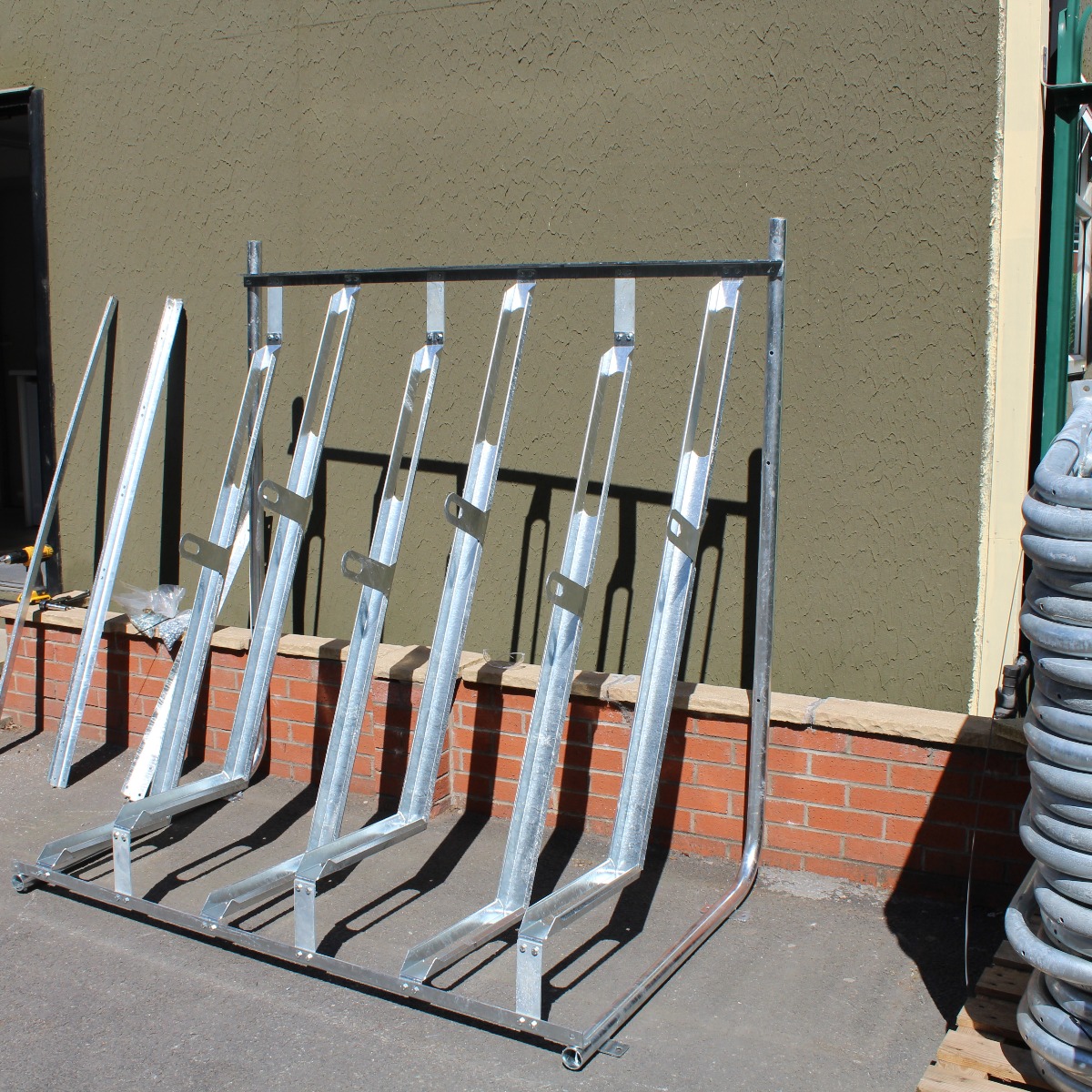

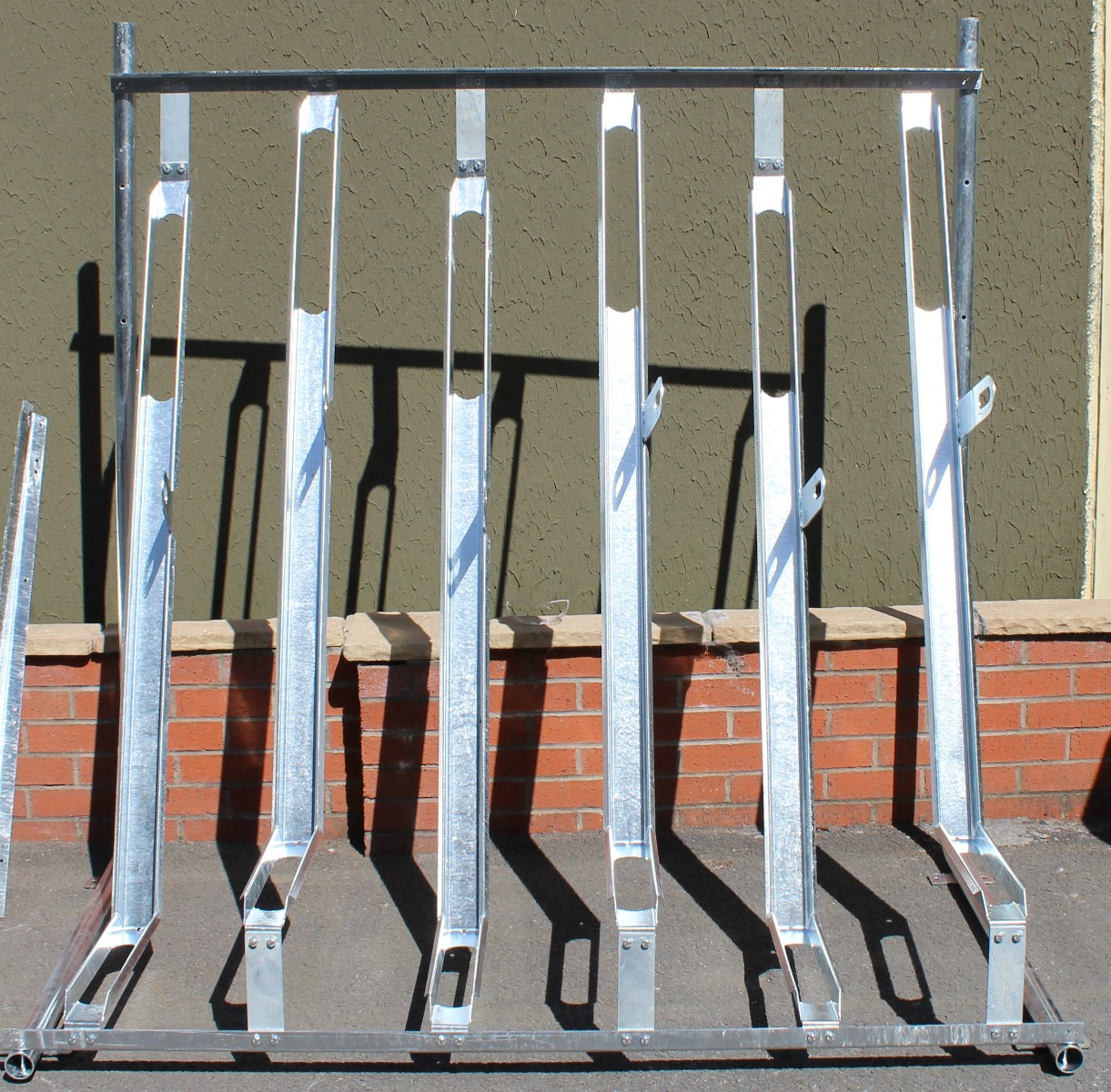

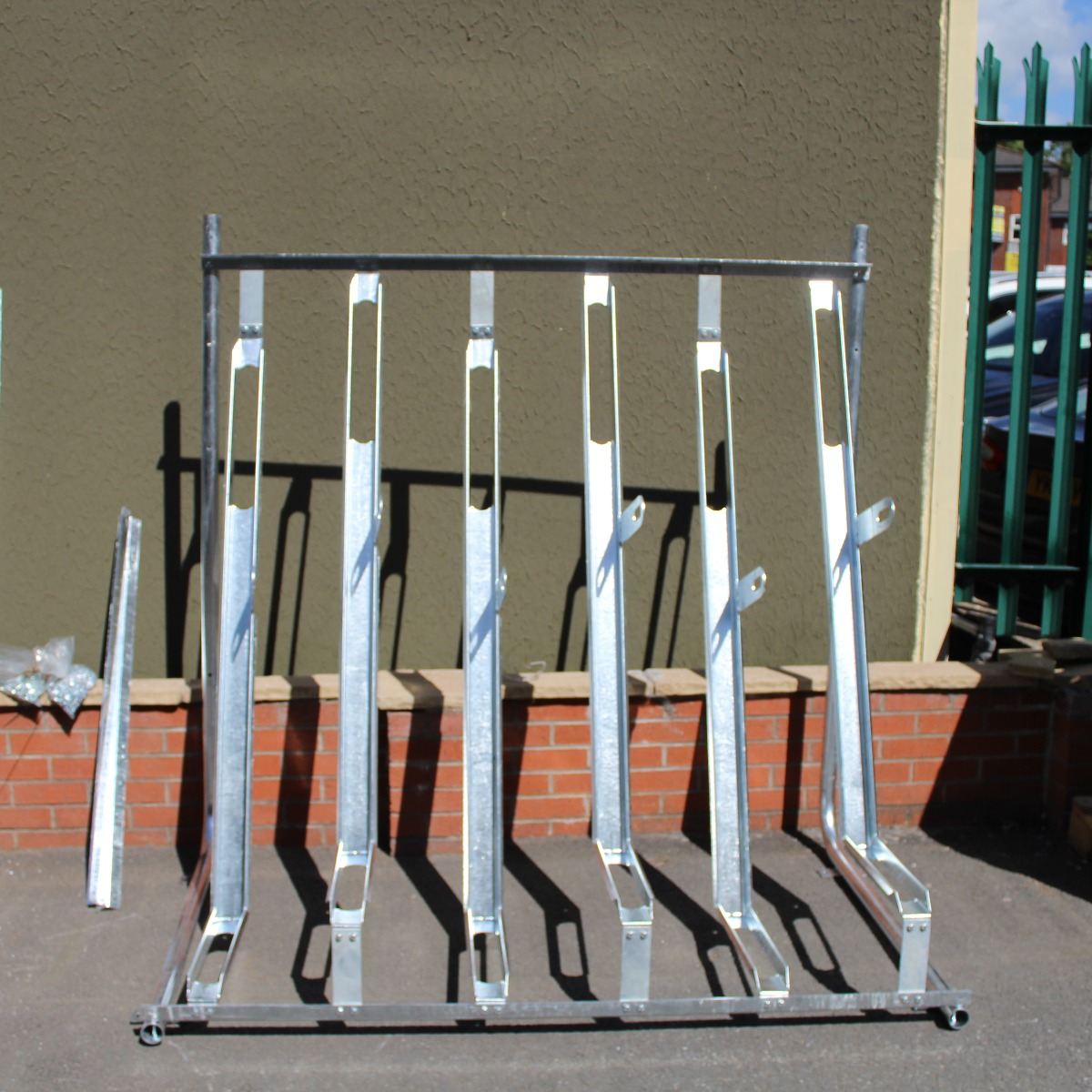

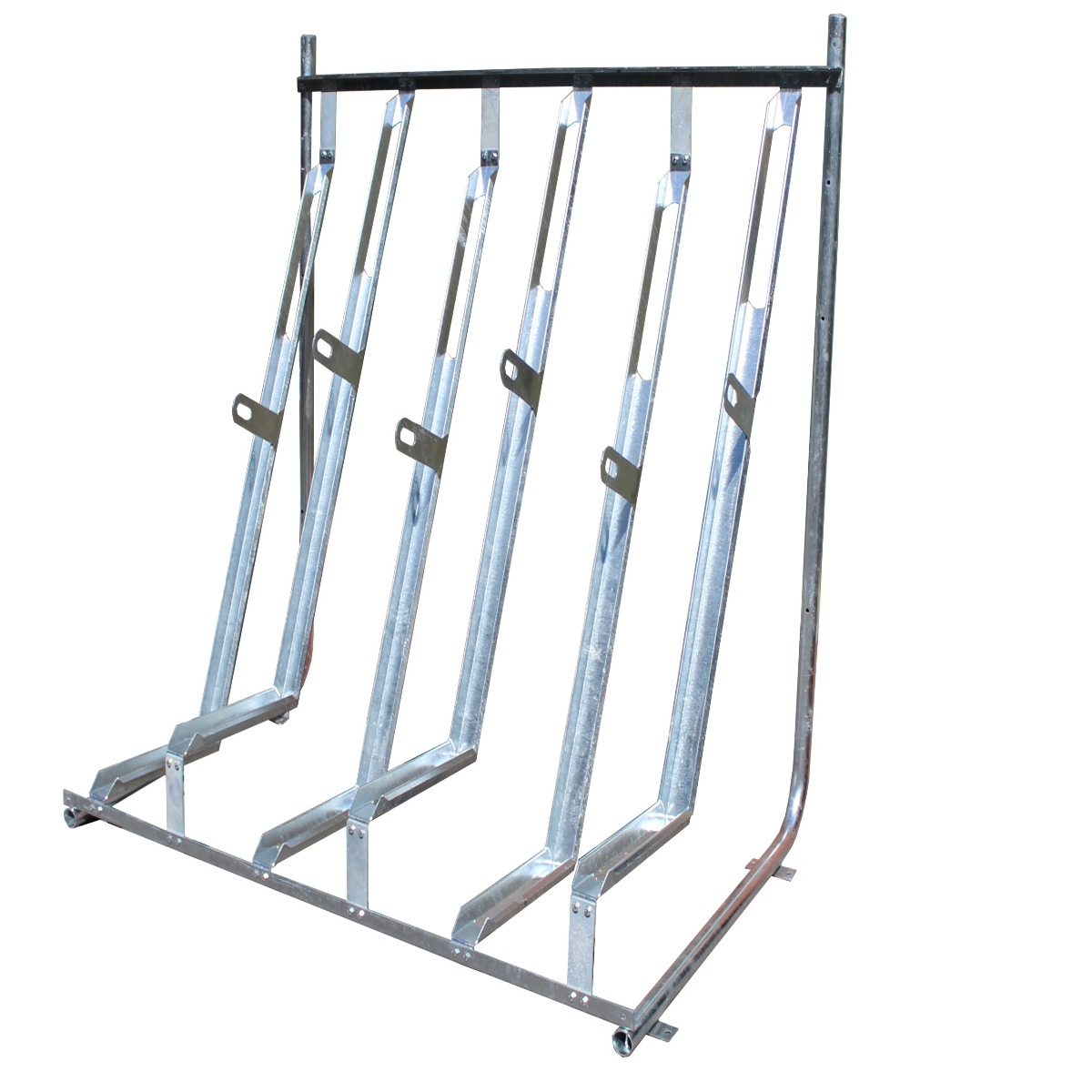

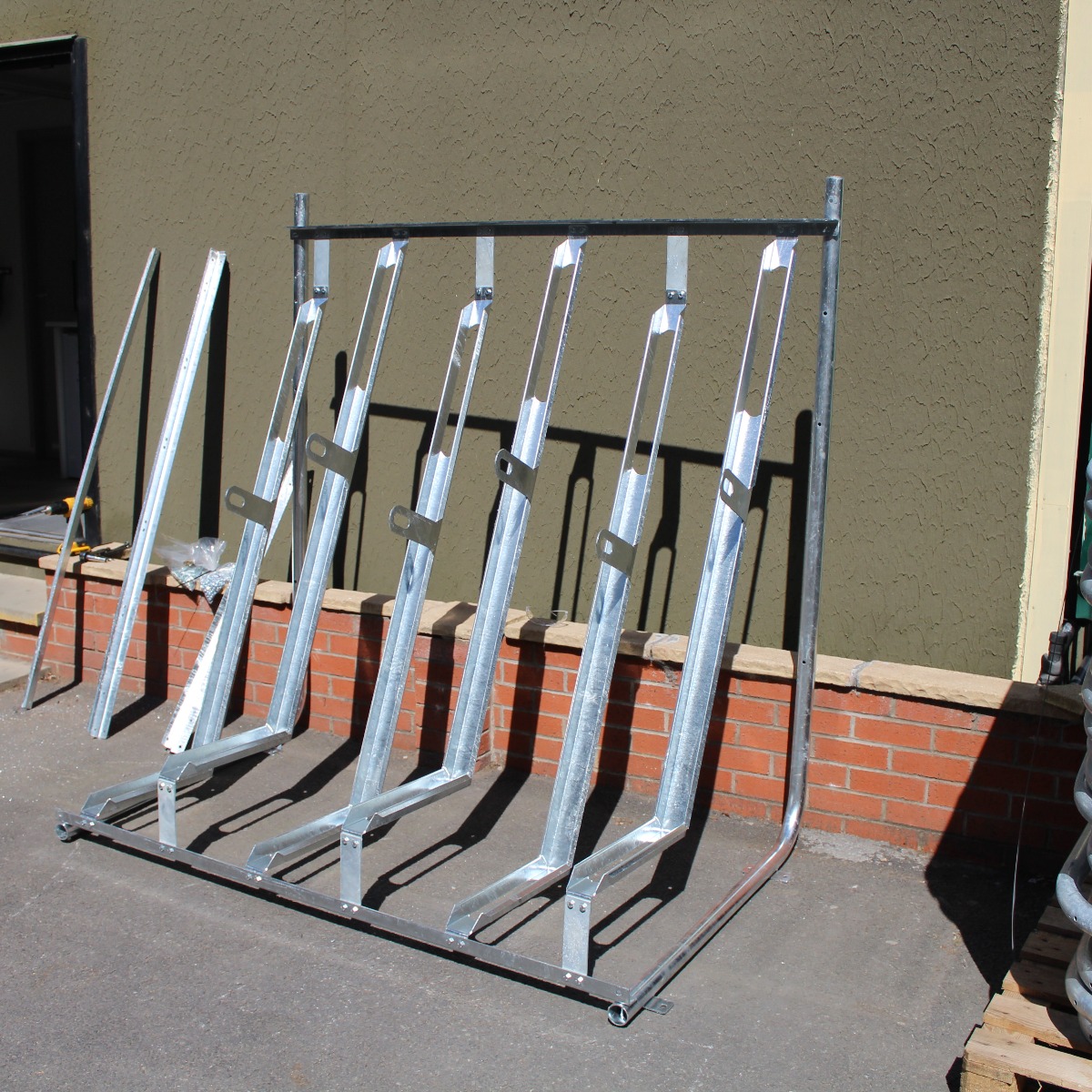

The Snowdon Semi Vertical Cycle Rack has been designed for space saving. These Cycle Stands are very popular in areas where space is at a premium such as Train Stations, Shopping Centres, Car Parks, Offices, Apartments.

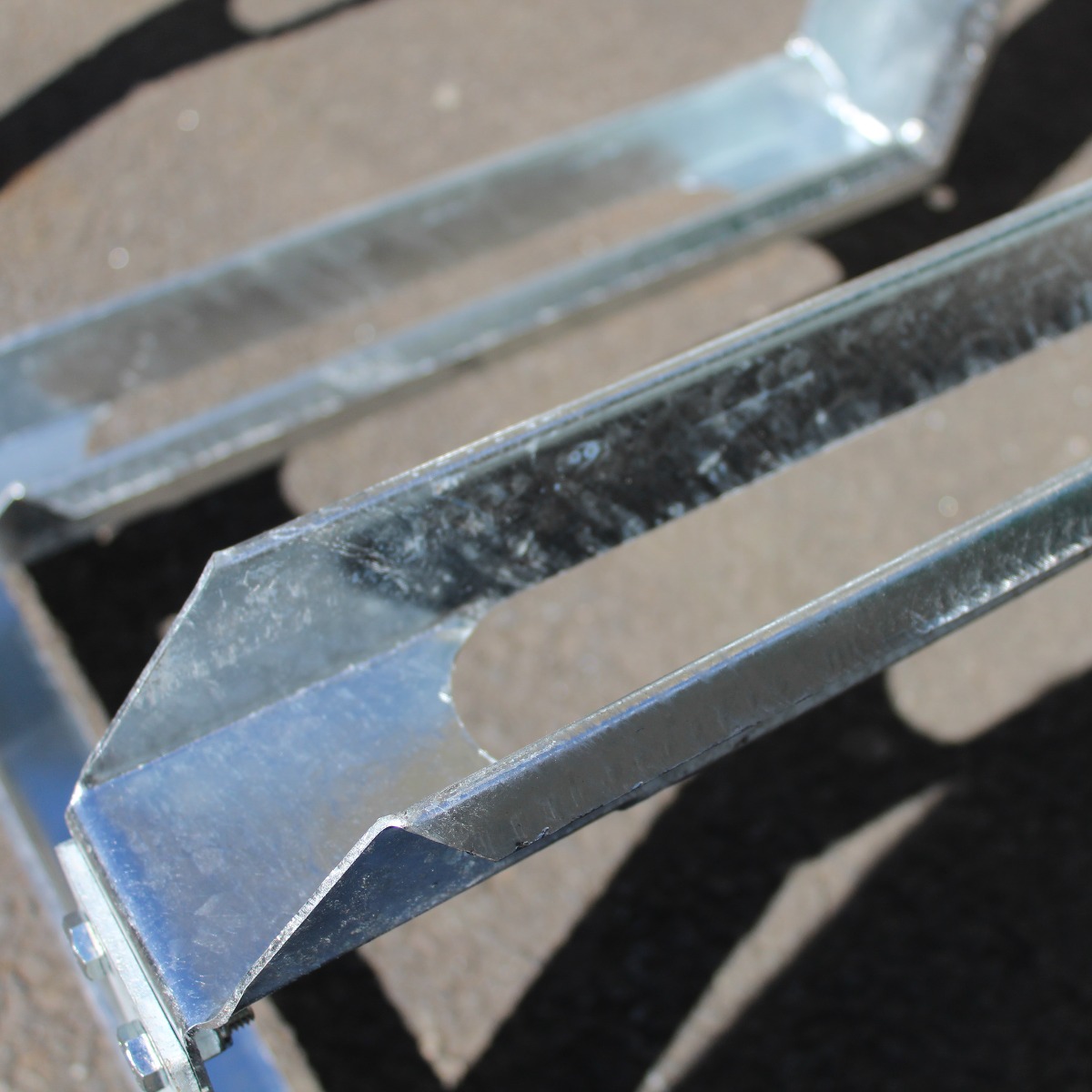

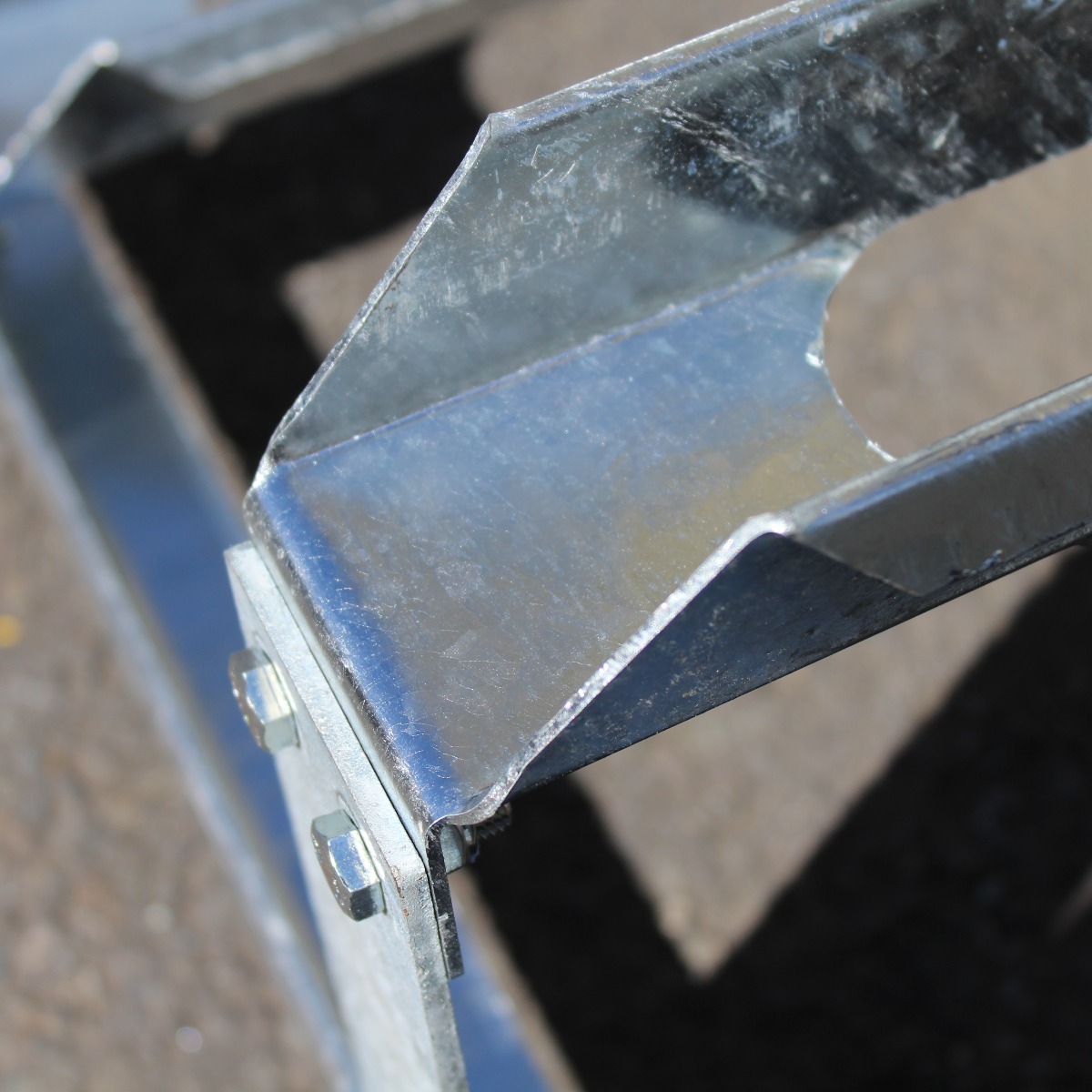

The bicycles are stored semi vertically with the front and rear wheel supported in a custom designed trough. With there being a wide range of bicycles on the market, the Snowdon Semi Vertical Rack Stand has been designed to hold everything from Road Bikes to Mountain Bikes with extra wide tyres.

You can arrange the Snowdon Semi Vertical Rack in any number to accommodate as many bicycles as you need, it just comes down to how much space there is available.

 *We are able to offer free site visits on certain projects depending on location and quantity required.

The lengths per rack are calculated on 305mm Centres and allowing for end space of 300mm per end.
So the Length of a 9 space is (8 x 305mm = 2440mm + 600mm = 3040mm total length).



Priced at £73 per bike space needed

Specifications

Weight 90.00 kg
Length 305mm
Depth 1100mm
Height 1780mm
Fixing Surface Mounted
Material Steel
Colour Galvanised
Street Furniture Direct

Snowdon Semi Vertical Cycle Rack FAQs

The Snowdon Semi Vertical Cycle Rack has a specific element that allows a standard bike lock to be attached to the bike frame and the Cycle Rack frame. Bike locks are not supplied.
It is not recommended to get the Snowdon Semi Vertical Cycle Rack powder coated as it is prone to scratch and tear which becomes unsightly. The standard galvanised has a grey metallic finish. The galvanising is to the industry standard: BS EN 1461.
The number of bike spaces depends on the space you have available. The 5 bike space unit can be installed in a space length of 1820mm. The 20 bike space unit needs a minimum space of 6700mm. For further information on the space needed for the Snowdon Semi Vertical Cycle Rack please refer to the data sheet. We can also offer a site visit to measure fully for projects that have a difficult layout or require more than 100 bike spaces.

The recommended space surrounding the Snowdon Semi Vertical Cycle Rack is 300mm at either end, and 2000mm in front. This creates enough space for handlebars and for users to manoeuvrer their bikes into the troughs with ease.
The Snowdon Semi Vertical Cycle Rack has been designed to hold everything from Road Bikes to Mountain Bikes with extra wide tyres.

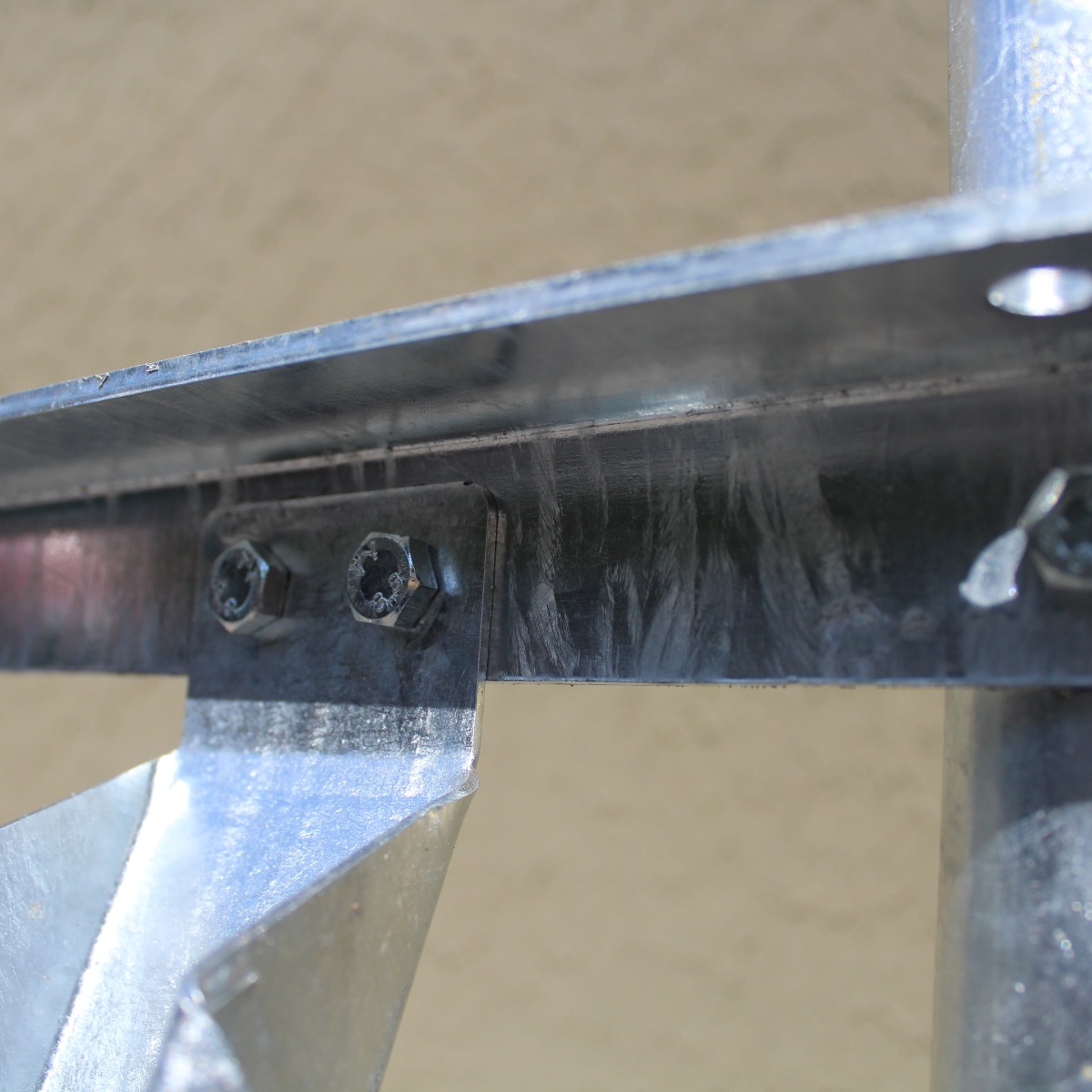

The Snowdon Semi Vertical Cycle Rack comes with installation instructions. Each section easily bolts together, and the frame is bolted to the floor.

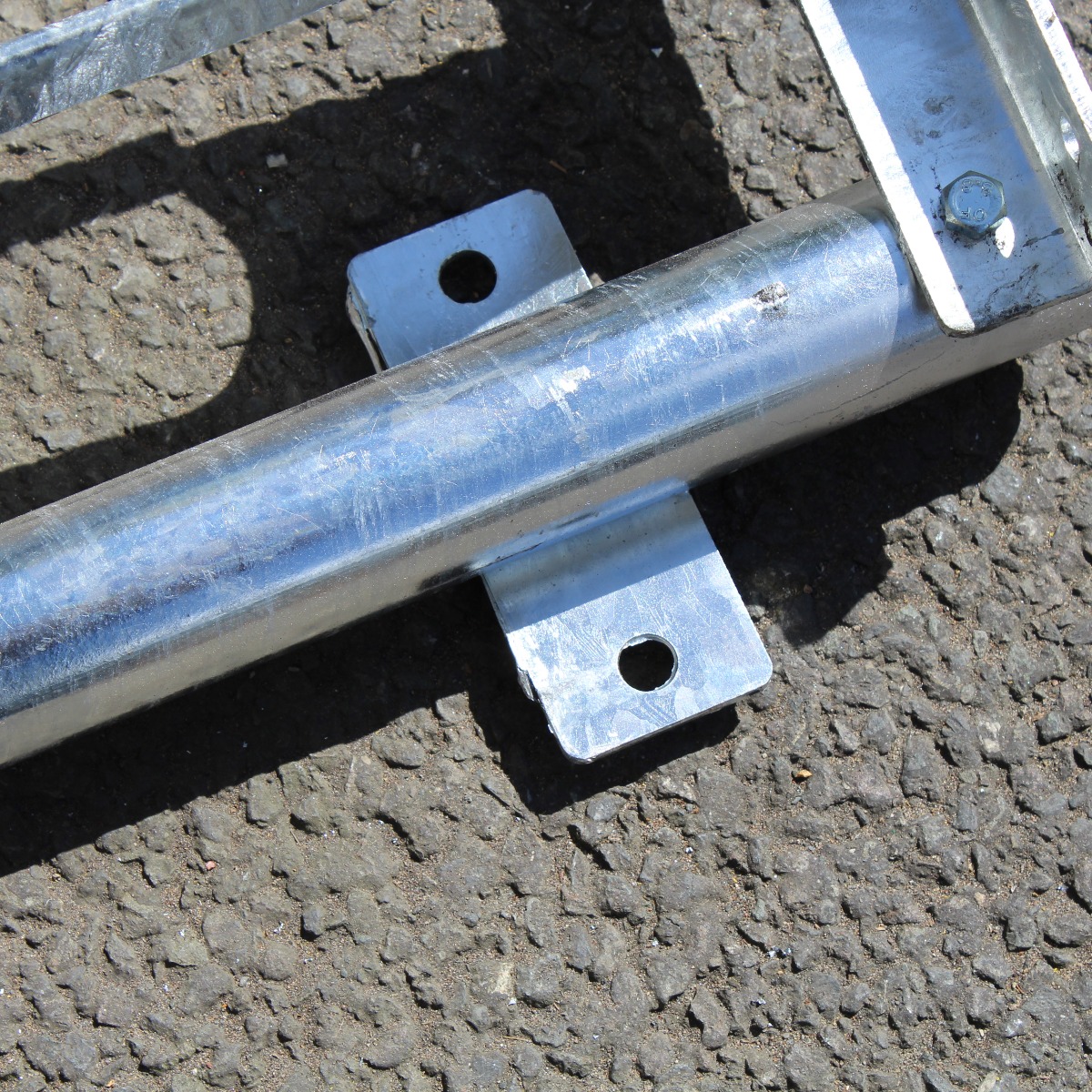

The Snowdon Semi Vertical Cycle Rack can only be bolted to the floor. Bolts are not supplied.
The Snowdon Semi Vertical Cycle Rack is ideal for installing in locations where space is limited, particularly train stations, shopping centres, car parks, and in the basements of office blocks and apartment buildings.
The Snowdon Semi Vertical Cycle Rack has a guaranteed warranty for 1 year however it should last for a significantly longer period depending on location, how much it is used, how often it is cleaned and whether it has been physically damaged or vandalised. If the Snowdon Semi Vertical Cycle Rack is installed in a secure interior location it will last even longer.
Homepage Dots

Customer Reviews

Leave Your Review

Semi vertical cycle stands

Semi vertical cycle stands are ideal for use in areas where space is at a premium. These bike racks are a popular option among UK contractors and subcontractors as they are cost-effective, durable, and long-lasting. So, they get high-quality cycle stands that will stand the test of time for their client's project.

Popular in various urban areas, including office blocks, car parks, universities, train stations, apartment blocks and other town/city centre areas. Because users store their bikes vertically, the semi-vertical bike racks footprint is much smaller than other styles of cycle storage.

Street Furniture Direct are pleased to offer a range of space-saving cycle parking options, all available with competitive pricing and short lead times. There's a range of cycle storage racks to choose from, so whether you are specifying for an internal or external area, we have a perfect style for you.

Semi vertical cycle rack

We have a range of semi-vertical cycle racks for you to choose from for your project. Popular choices include the Snowdon Semi Vertical Cycle Rack and the X-Type Semi Vertical. These models complement the fully vertical cycle stands on offer, including the Eltham Cycle Rack and the Eltham Cycle Trough.

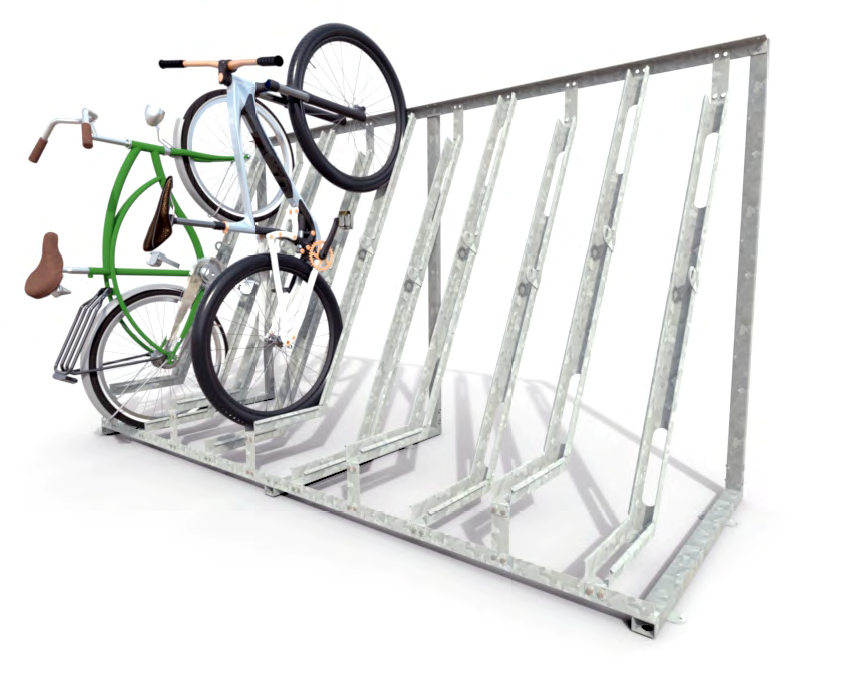

The semi-vertical bike racks store the cycles semi vertically with the front and rear wheels supported in a specially designed trough. It's common for users to find these types of bike racks easy to operate as they use the trough as guidance and roll the bikes up until they're in place and secure.

Another benefit of the semi-vertical cycle racks is that they can accommodate all kinds of bicycles - mountain bikes, road bikes, gravel bikes and more. This includes bikes with extra-wide tyres!

Everything is included as part of the cost, ensuring you have all that you need to complete the installation. All high-security locking hoops, as well as all fixtures and fittings needed for assembly, are included. Powder coating is available as an option.

We are proud to have supplied our semi vertical bike racks to many contractors and organisations throughout the UK, including The Houses of Parliament, Kier, Bam, Sisk Contractors, Anglian Home Improvements, Crest Nicholson, CTS Construction, VITA Student, and many more.

Benefits of semi-vertical bike stands

One of the main benefits of semi-vertical bike racks is their space-saving capabilities. As bikes are stored semi vertically, the footprint of the stand is significantly reduced compared to other bike storage options.

Because of this, they are really popular with contractors and subcontractors who are working on city-centre projects where space is at a premium.

Cities across the UK, including Manchester, Liverpool and London, continue to be at the centre of an unprecedented wave of development. The cityscape of Manchester is barely recognisable to that of a decade ago with new towers, including residential and commercial buildings being commissioned on repeat.

Early 2022 has seen four major skyscrapers that have been approved for Manchester. The Trinity Islands scheme towers will have between 39 and 60 storeys at an expected cost of £530m to build. These high rise residential apartments plan to deliver 1,390 homes, for which there will need to be significant investment in bike storage and cycle parking available.

Snowdon Semi Vertical Cycle Rack

The Snowdon Semi Vertical Cycle Rack is a really popular option for town/city centre areas where space is limited. Areas such as train stations, apartment blocks, office buildings, universities and other central urban areas.

The cycle frame offers a simple design, hard-wearing functionality, and excellent safety features for the users.

High quality

The semi-vertical bike stands are made from steel therefore you can be confident they will stand the test of time for many years after installation. We offer a 1-year warranty as standard and a 10-year warranty on the galvanising.

The bike racks are galvanised to BS EN ISO 1461 as standard. We are also able to offer a powder-coated finish too, so just speak to our team to find out more or arrange for your project.

Easy to install

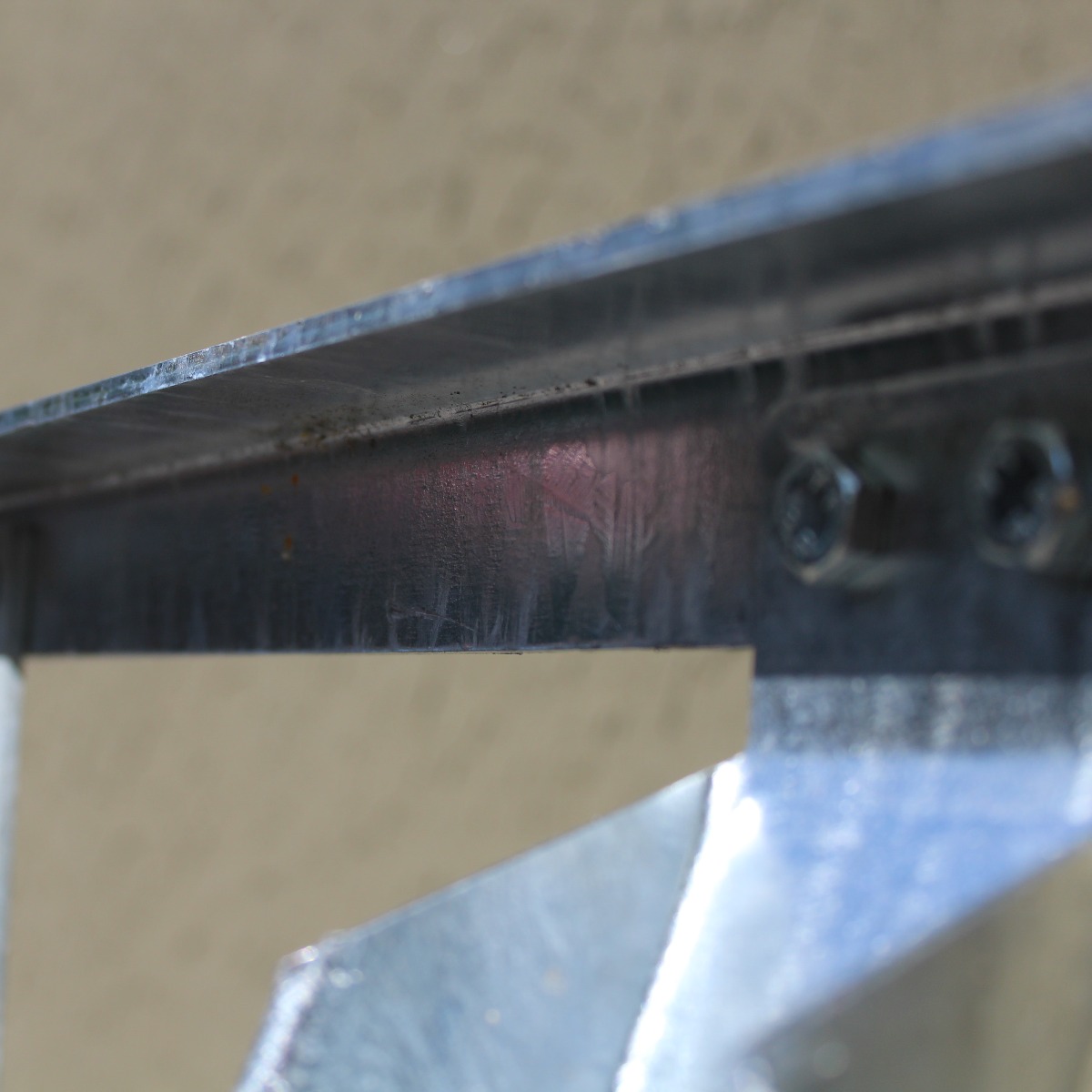

Assembly consists of standard parts that can be extended or relocated at any time, giving you and your clients flexibility should plans change. The frame is surface mounted giving you easy access to all fixing points.

Secure and safe

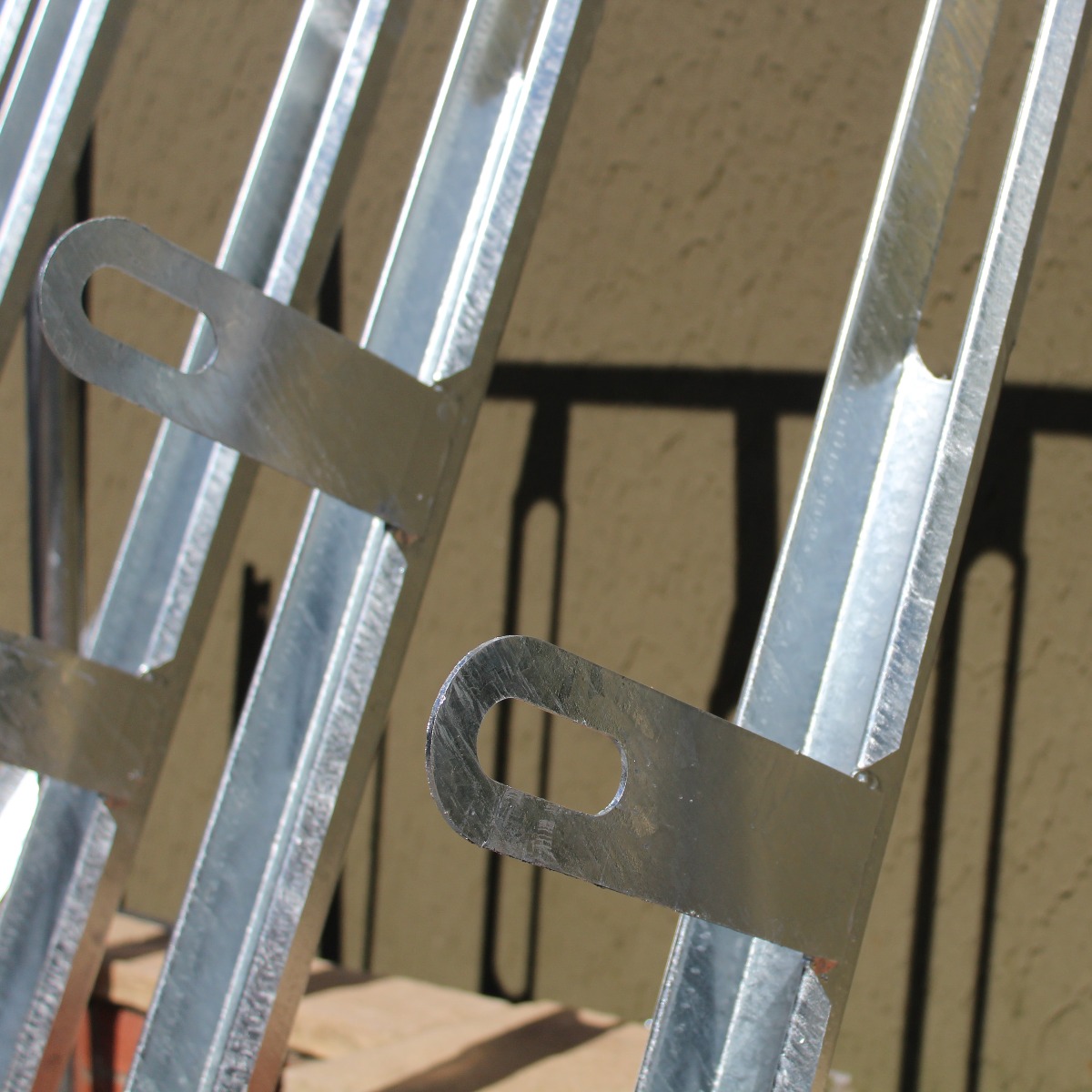

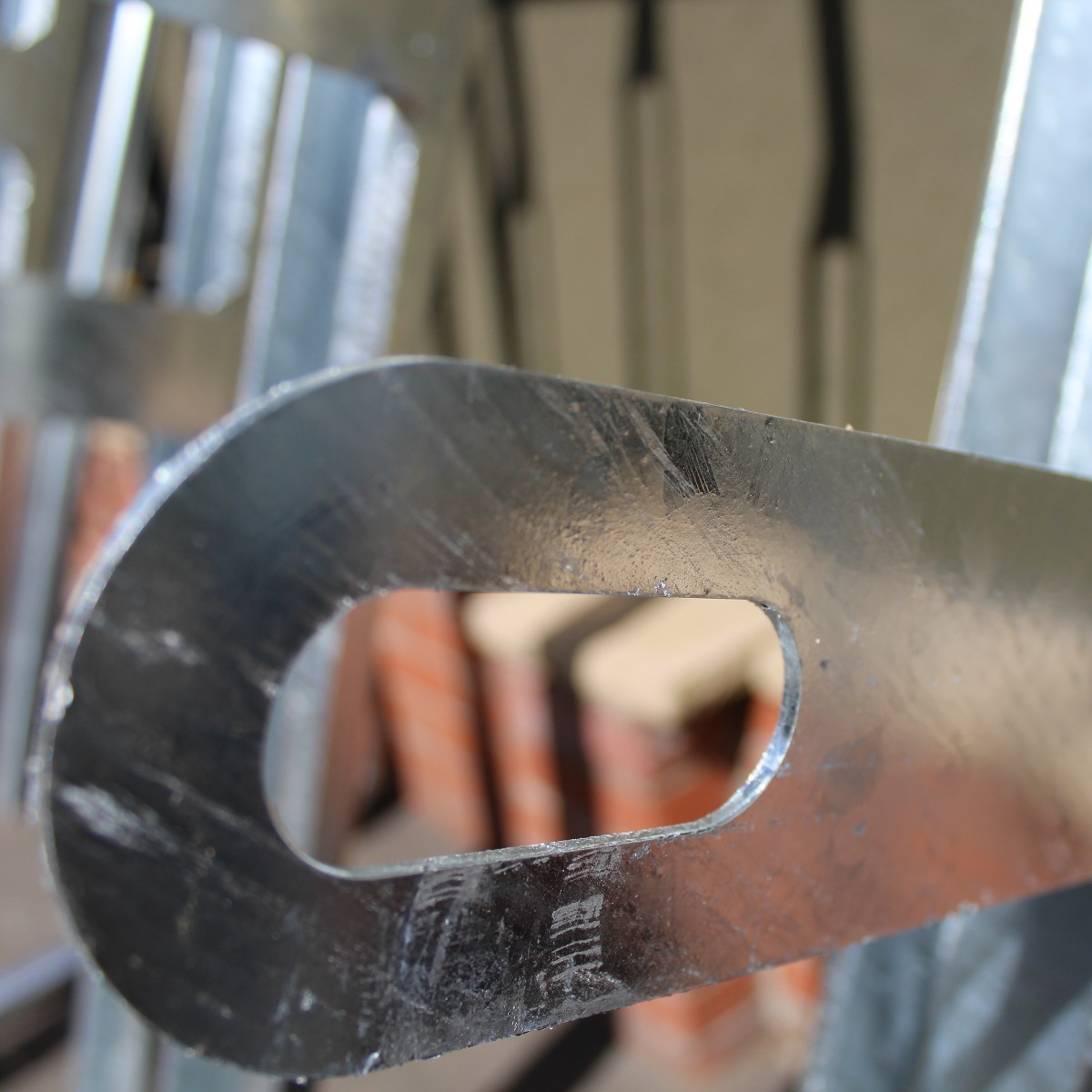

Each bike has multiple locking points. The addition of the locking hoop allows users to secure both the wheel and frame to the rack, providing higher levels of security.

The bike frame doesn’t rest on the stands which reduces the potential risk of scratching.

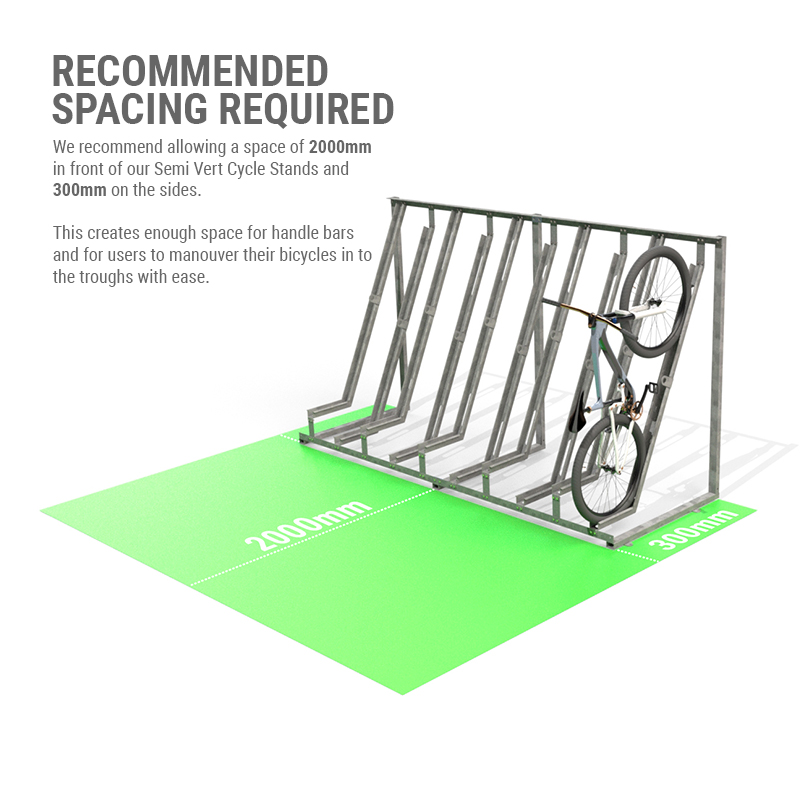

Installation advice - recommended spacing required

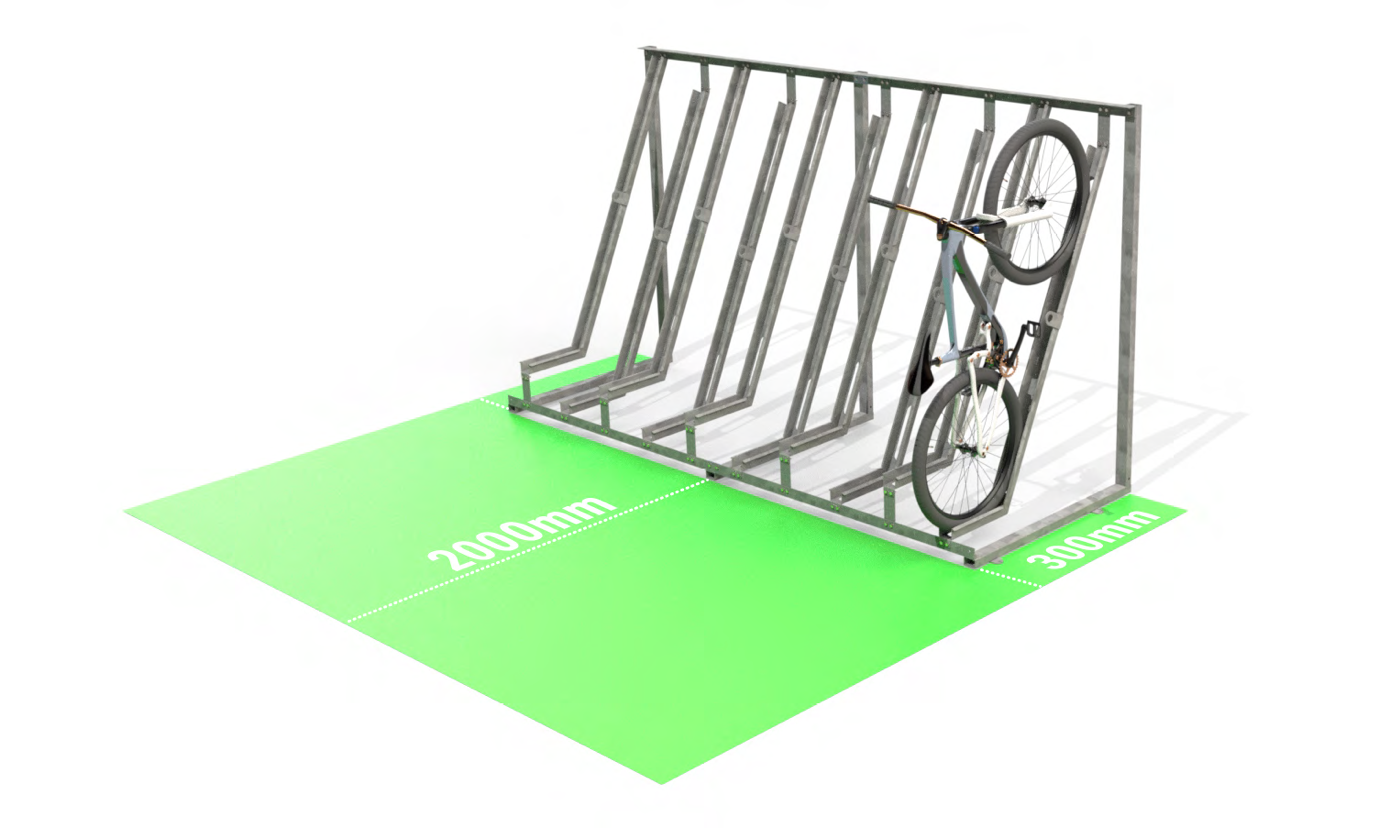

We recommend allowing a space of 2000mm in front and 300mm to the sides of our semi vertical bike racks. This creates enough space for the bikes' handlebars and for users to manoeuvre their bicycles into the troughs with ease.

How to order

You can order your semi vertical bike racks by visiting the product page below.

Snowdon Semi Vertical Bike Rack (from £ 55.00 ex VAT per bike space)

Both semi vertical bike racks are priced per bike space. For example, if you wanted to order the Snowdon Semi Vertical Cycle Rack, the lengths per rack are calculated on 305mm Centres and allow for an end space of 300mm per end. So the Length of a 9 space is (8 x 305mm = 2440mm + 600mm = 3040mm total length).

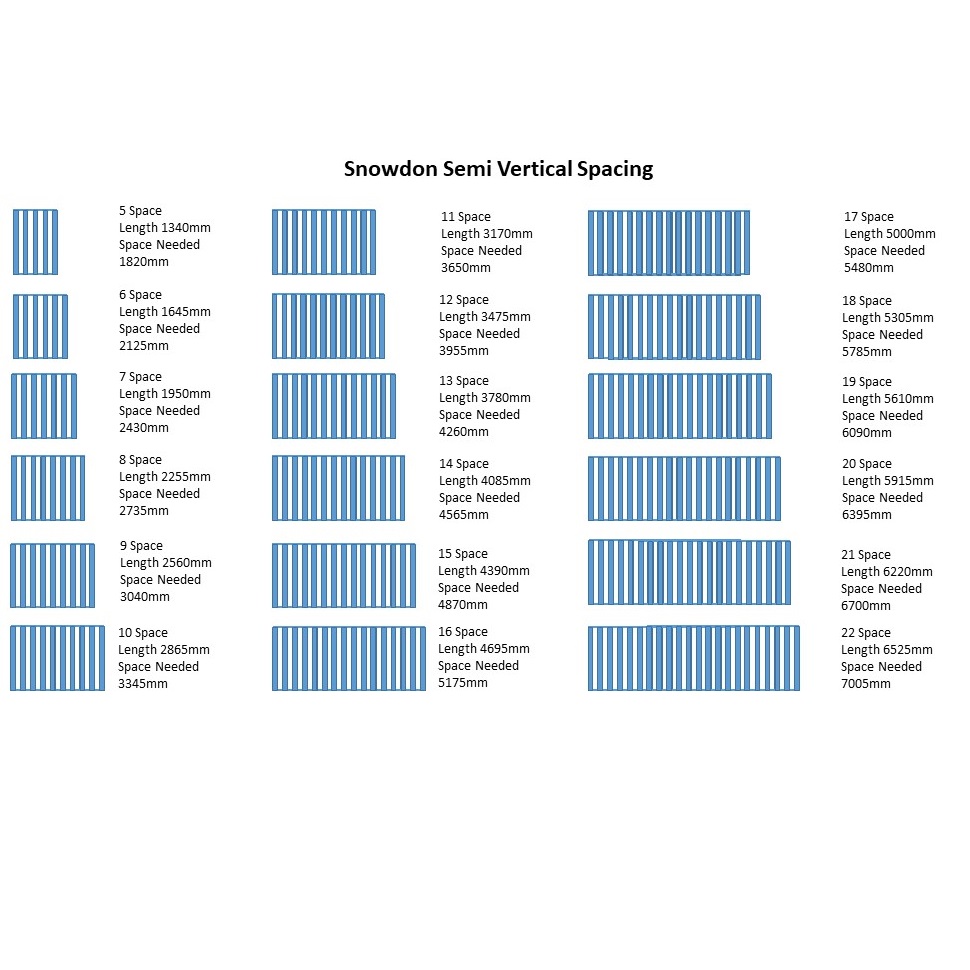

See the diagram below for more details.

James Wain of Street Furniture Direct, comments,

"Our team here at Street Furniture Direct understands the need to turn orders around quickly. If you need a semi vertical bike rack in a hurry we can help.

You can order direct from our website, give our team a call on 01625 879 442, or email us at enquiries@streetfurnituredirect.co.uk

Whether you need semi vertical bike storage for a particularly small space, or whether you are working on a project with a really tight lead time, we can help.

It's always worth a conversation with our team and I would say on most occasions we can really help our customers. We're here to solve our customers' problems!"
